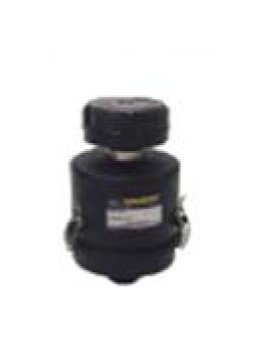

Spinmeister Extreme Duty Inlet Air Filter, 1-1/2in Outlet, Polyester Element
Spinmeister Extreme Duty Inlet Air Filter, 1-1/2in Outlet, Polyester Element
SKU:SPI-427945
Efficient Spinmeister Extreme Duty Air Filter for high dust environments, extends filter life, and ensures superior air quality.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter, 1-1/2in Outlet, Polyester Element
$79.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter, 1-1/2in Outlet, Polyester Element
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter is engineered for high dust environments, prolonging filter life with 85% efficiency at 15 microns or larger. Featuring a centrifugal flow design that forces particulate through side louvers, this innovative filter ensures optimal air quality. With a pleated polyester element boasting over 99% efficiency, it excels in applications like blowers, engines, and pneumatic conveying systems. Constructed with a durable carbon steel housing and customizable configurations, this filter adapts to various industrial needs effortlessly.
Product Specifications
Dimensions Dimension A
10-3/4 in
Dimensions Dimension B
1-5/8 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
3.7 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1-1/2 in
Specifications Rated Flow
85 scfm
Specifications Type
B
