Spinmeister Extreme Duty Inlet Air Filter - 1-1/4 Inch Outlet, Paper Element
Spinmeister Extreme Duty Inlet Air Filter - 1-1/4 Inch Outlet, Paper Element
SKU:SPI-48801c
Enhance filter lifespan in high-dust settings with Spinmeister Extreme Duty Inlet Air Filter - 1-1/4 in outlet, paper element. Efficient, durable, versatile for various industries.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter - 1-1/4 Inch Outlet, Paper Element
$129.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter - 1-1/4 Inch Outlet, Paper Element
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

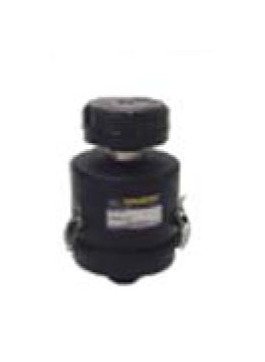

The Spinmeister Extreme Duty Inlet Air Filter with a 1-1/4 inch outlet and paper element is engineered for high dust environments, prolonging filter life. With 85% efficiency at 15 microns, it features a centrifugal flow design and a 99%+ pleated element for superior filtration. Constructed with durable carbon steel housing, it ensures low pressure drop and a temperature range from -15 ºF to 220 ºF. Offering multiple configurations and materials, this filter meets stringent industry standards, making it ideal for applications in Blowers, Cement Industry, Engines, and more.
Product Specifications
Dimensions Dimension A
10-3/4 in
Dimensions Dimension B
1-5/8 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
3.7 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1-1/4 in
Specifications Rated Flow
70 scfm
Specifications Type
B
