Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Paper Element
Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Paper Element
SKU:SPI-ffe1c7
Enhance air quality and filter lifespan with the Spinmeister Extreme Duty Inlet Air Filter: 1/2" Outlet, Paper Element, 99%+ efficiency, ideal for high dust environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Paper Element
$49.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Paper Element
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

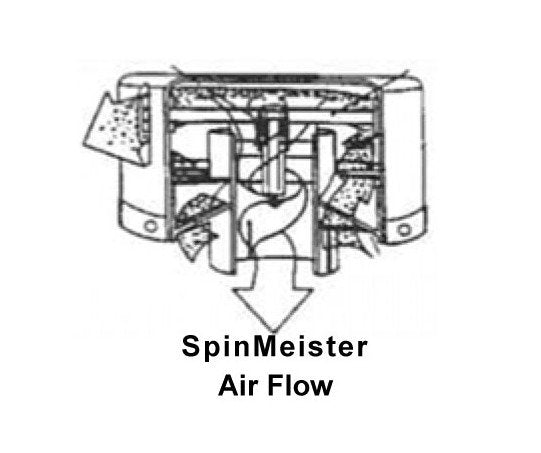

The Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet and Paper Element is engineered for high dust environments, enhancing filter lifespan by 85% efficiency at 15 microns. Featuring a pleated element with over 99% efficiency, this filter ensures superior air quality for applications in Blowers, Engines, Fans, Foundries, and more. Constructed with durable carbon steel housing, it offers easy maintenance and longevity, making it an ideal choice for demanding industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

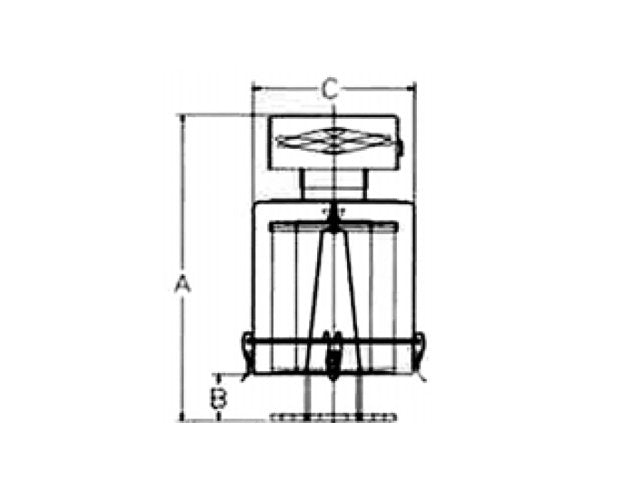

Dimensions Dimension A
7-3/8 in
Dimensions Dimension B
7/8 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
2 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1/2 in
Specifications Rated Flow
40 scfm
Specifications Type
A
