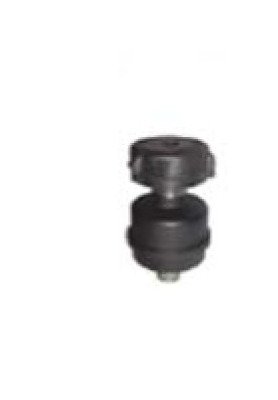

Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Polyester Element
Spinmeister Extreme Duty Inlet Air Filter - 1/2" Outlet, Polyester Element
SKU:SPI-acdbe3
Experience extreme dust filtration and extended filter life with our Spinmeister Inlet Air Filter - 1/2" Outlet
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Spinmeister Extreme Duty Inlet Air Filter with a 1/2" outlet features unparalleled filtration efficiency in high dust environments. With a centrifugal flow design achieving 85% efficiency at 15 microns, and a pleated polyester element offering over 99% efficiency, this filter significantly extends filter life. Built with durable carbon steel housing and precision engineering, it suits various applications such as blowers, engines, and pneumatic conveying systems. This configurable product ensures adaptability to specific needs, ideal for industries like cement, plastics, and more.
Product Specifications
Dimensions Dimension A
7-3/8 in
Dimensions Dimension B
7/8 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
1.5 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1/2 in
Specifications Rated Flow
30 scfm
Specifications Type
A
