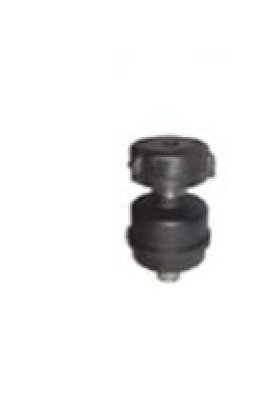

Spinmeister Extreme Duty Inlet Air Filter, 1 Inch Outlet, Polyester Element
Spinmeister Extreme Duty Inlet Air Filter, 1 Inch Outlet, Polyester Element
SKU:SPI-d49b24
Enhance air quality with the Spinmeister Extreme Inlet Air Filter. Designed for high dust environments, this filter extends element life and offers exceptional efficiency at 15 microns.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter, 1 Inch Outlet, Polyester Element
$89.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter, 1 Inch Outlet, Polyester Element
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with a 1-inch outlet and polyester element is engineered for high dust environments, prolonging filter life significantly. Featuring a centrifugal flow design that achieves 85% efficiency at 15 microns, this filter ensures superior air quality. With a 99%+ efficient pleated element, durable carbon steel housing, and customizable configurations, it meets the stringent requirements of industrial applications, including blowers, cement, engines, fans, foundries, and more.
Product Specifications
Dimensions Dimension A
7.75 in
Dimensions Dimension B
1-1/4 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
2 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1 in
Specifications Rated Flow
40 scfm
Specifications Type
A
