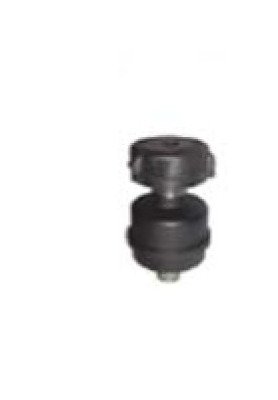

Spinmeister Extreme Duty Inlet Air Filter - 3/4 in Outlet, Polyester Element
Spinmeister Extreme Duty Inlet Air Filter - 3/4 in Outlet, Polyester Element
SKU:SPI-a9d86b
Enhance air quality with the Spinmeister Extreme Duty Inlet Air Filter, designed for high dust environments. Achieve superior filtration efficiency and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter - 3/4 in Outlet, Polyester Element
$89.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter - 3/4 in Outlet, Polyester Element
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with Polyester Element is designed for high dust environments, offering extreme filtration efficiency. With a centrifugal flow and pleated element, it achieves 85% efficiency at 15 microns and over 99% efficiency for finer particles. The durable carbon steel housing and low pressure drop design ensure long-lasting performance, making it ideal for applications in Blowers, Cement Industry, Engines, Fans, Foundries, and more. This versatile filter can be customized for specific needs, meeting the demands of both consumer and institutional buyers.
Product Specifications
Dimensions Dimension A
7.75 in
Dimensions Dimension B
1-1/4 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
1.5 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3/4 in
Specifications Rated Flow
30 scfm
Specifications Type
A
