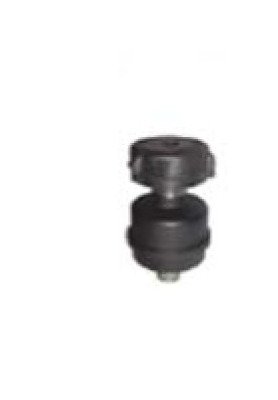

Spinmeister Extreme Duty Inlet Air Filter 3/4 in Outlet with Polyester Element
Spinmeister Extreme Duty Inlet Air Filter 3/4 in Outlet with Polyester Element
SKU:SPI-3f1c05
Enhanced dust filtration with maximum efficiency and durability for diverse industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter 3/4 in Outlet with Polyester Element
$89.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter 3/4 in Outlet with Polyester Element
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3/4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element is engineered for extreme dust environments, significantly extending filter element lifespan. With 85% efficiency at 15 microns, it features a centrifugal flow design forcing particulates through side louvers, followed by a 99+% efficient pleated element. Constructed from durable molded fiber filled composite, this filter ensures optimal performance in various applications, including blowers, cement, engines, fans, and more. Easily tailored to specific requirements, this product offers unparalleled filtration quality and durability.
Product Specifications
Dimensions Dimension A
7.75 in
Dimensions Dimension B
1-1/4 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
2 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3/4 in
Specifications Rated Flow
40 scfm
Specifications Type
A
