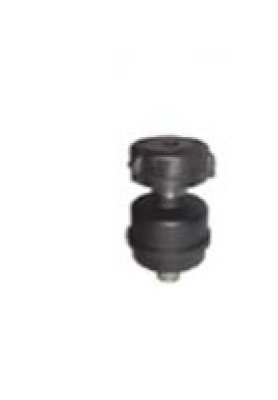

Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet
Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet
SKU:SPI-9afc96
Enhance equipment longevity in high dust areas with the Spinmeister Extreme Duty Inlet Air Filter. Achieve superior filtration efficiency and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet
$89.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with 1/2" Outlet is engineered for high dust environments, extending filter element lifespan. With 85% efficiency at 15 microns, it features a centrifugal flow system pushing particulates through side louvers. The lower chamber houses a 99% pleated element, ensuring superior filtration. Constructed with durable materials, this product offers customizable configurations for various applications, making it a reliable choice for industrial settings.
Product Specifications
Dimensions Dimension A
7-3/8 in
Dimensions Dimension B
7/8 in
Dimensions Dimension C
4-1/8 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
1.5 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1/2 in
Specifications Rated Flow
30 scfm
Specifications Type
A
