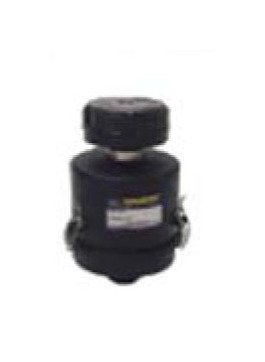

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

SKU:SPI-3e95d5

Enhance filter lifespan and efficiency in high dust environments with the Spinmeister Extreme Duty Air Filter's polyester element and 2" outlet.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

$89.99

Quantity: 1

Claim Your Seller Account

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

Spinmeister Extreme Duty Inlet Air Filter with 2" Outlet, Polyester Element

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Spinmeister Extreme Duty Inlet Air Filter with a 2-inch outlet and polyester element is engineered for high dust environments, significantly extending the filter element's lifespan. With 85% efficiency at 15 microns, it employs centrifugal flow to force particulate through side louvers before filtering through a 99%+ efficient pleated element. Constructed with durable materials and configurable to various applications, this filter ensures optimal performance and longevity in demanding industrial settings.

Product Specifications

Dimensions Dimension A
11-3/8 in
Dimensions Dimension B
2-1/4 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
4 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
2 in
Specifications Rated Flow
100 scfm
Specifications Type
B
