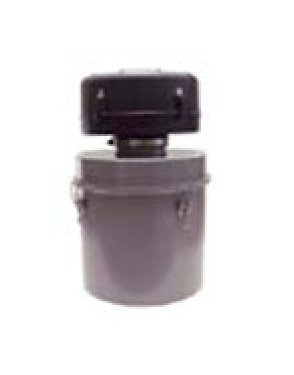

Spinmeister Extreme Duty Inlet Air Filter with 3-Inch Outlet
Spinmeister Extreme Duty Inlet Air Filter with 3-Inch Outlet
SKU:SPI-ed2710
Enhance equipment longevity with the Spinmeister Extreme Duty Inlet Air Filter. Optimal filtration for high dust environments.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter with 3-Inch Outlet
$349.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter with 3-Inch Outlet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with a 3-inch outlet is engineered for high dust environments, offering superior filtration efficiency to protect equipment and prolong filter element lifespan. With a centrifugal flow design achieving 85% efficiency at 15 microns or larger, combined with a 99%+ efficient pleated polyester element, this filter ensures optimum air quality. Constructed with durable materials, including a carbon steel base housing, it features low-pressure drop bracket design for enhanced performance. This versatile filter is ideal for applications in industries like fans, blowers, cement, plastics, and more, providing reliable protection against particulate matter.
Product Specifications
Dimensions Dimension A
19-5/8 in
Dimensions Dimension B
3 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
32 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
3 in
Specifications Rated Flow
300 scfm
Specifications Type
C
