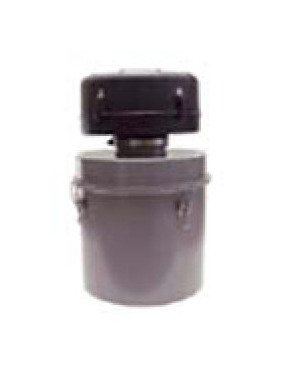

Spinmeister Extreme Duty Inlet Air Filter with 4in Outlet - Polyester Element
Spinmeister Extreme Duty Inlet Air Filter with 4in Outlet - Polyester Element
SKU:SPI-044be5
Enhance filter efficiency in high dust environments with the Spinmeister Extreme Duty Inlet Air Filter with 4in Outlet. 85% efficiency at 15 microns
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Spinmeister Extreme Duty Inlet Air Filter with 4in Outlet - Polyester Element
$299.99
Quantity: 1
Claim Your Seller Account
Spinmeister Extreme Duty Inlet Air Filter with 4in Outlet - Polyester Element
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Spinmeister Extreme Duty Inlet Air Filter with a 4-inch outlet is designed for high dust environments, significantly prolonging the filter element's lifespan. With centrifugal flow directing particulate matter through side louvers achieving 85% efficiency at 15 microns, it then passes through a 99%+ efficient pleated polyester element. Constructed with durable molded fiber-filled composite material, this configurable filter is adaptable to various applications, making it a reliable choice for Blowers, Engines, Fans, Foundries, and more.
Product Specifications
Dimensions Dimension A
20-5/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
36 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
400 scfm
Specifications Type
C
