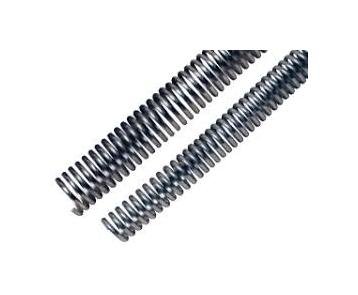

Spiral Guard Wrap - 1 1/2" Inside Diameter
Spiral Guard Wrap - 1 1/2" Inside Diameter
SKU:HOS-e8cec8
Protect and prolong the life of hydraulic hoses with our durable Spiral Guard Wrap - 1 1/2" Inside Diameter. Resistant to abrasion, cuts, and UV exposure.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Spiral Guard Wrap - 1 1/2" Inside Diameter
$129.99
Quantity: 1
Claim Your Seller Account
Spiral Guard Wrap - 1 1/2" Inside Diameter
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

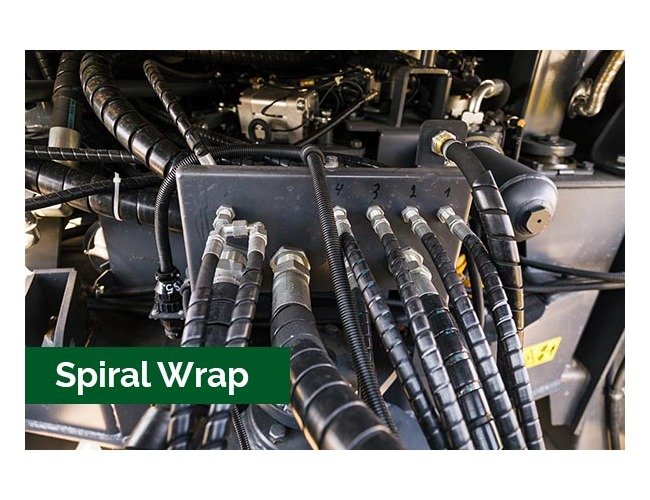

The Spiral Guard Wrap is a durable and cost-effective solution to protect hydraulic and pneumatic hoses, cables, wires, and rope from premature wear and damage. Constructed from high-density polyethylene (HDPE), this wrap is designed to withstand extreme conditions, including abrasion, cuts, crushing, UV exposure, and other hazards. Its round edges ensure easy and non-damaging installation, while the open spiral design allows for quick field installation without disconnecting lines. With a working temperature range of -60 to 210 degrees Fahrenheit, this wrap offers superior protection and visibility for multiple line applications, reducing maintenance costs and increasing operational uptime.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Availability Availability
Available in diameters from 3/8" (10mm) to 5-1/2" (140mm)Spiral Guard Wrap is a stock product, allowing for fast turnaround timeStandard color is Black, other availableStandard package depends on Spiral ID
Characteristics Characteristics
High-quality HDPE provides superior protection against mechanical wear and abrasion, crushing, and cut-through hazardsResistant to acids, oils, solvents, water, and UV-impingement, rejects dust & dirtCapable of bundling multiple lines together, providing simultaneous protectionRounded profile provides non-abrasive edges which will not damage hosesProtect assemblies from premature wear, reduce maintenance expenditures, and increase uptime
Material Composition And Added Value Material Composition And Ad
High-density Polyethylene - Very versatile system protectionSpiral-formed protection system - Install without disconnecting linesWear, cut, and crush- resistant polymer - Provides excellent line visibilityVarious colors available - SGW is recyclable and reusable
Specifications Color
Safety Orange
Specifications Inside Diameter
1.375 to 1.625 in
Specifications Length Per Box
100 ft
Specifications Size
24 in
Specifications Spiral Inside Diameter
1 1/2 in
Specifications Working Temperature Range
-60 to 210 ºF | -50 to 100 ºC
