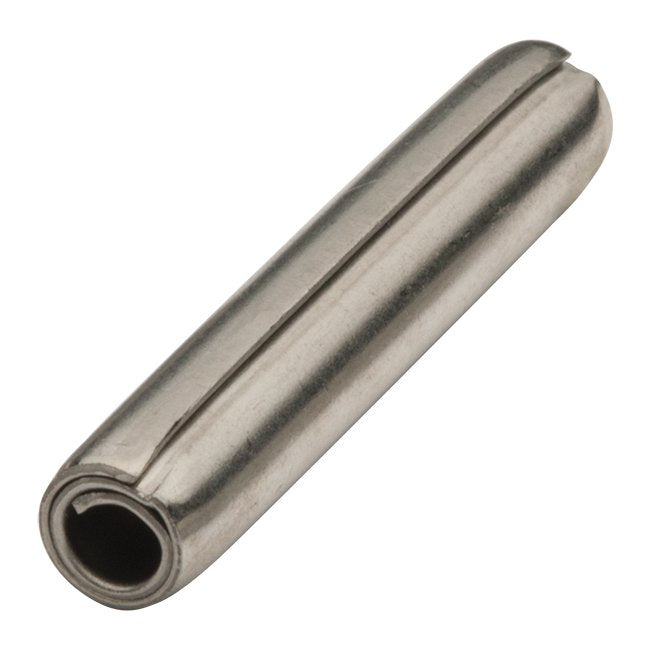

SPIROL Metric Standard Duty Coiled Spring Pin 2mm x 18mm, Nickel Stainless Steel
SPIROL Metric Standard Duty Coiled Spring Pin 2mm x 18mm, Nickel Stainless Steel
SKU:COI-ab3330
Reliable SPIROL Metric Standard Duty Coiled Spring Pin in 2mm x 18mm size, Nickel Stainless Steel, compliant with ISO 8750 & ASME B18.8.3M.
Regular price
$83.44
Regular price
Sale price
$83.44
Unit price
per
Initiate Order
SPIROL Metric Standard Duty Coiled Spring Pin 2mm x 18mm, Nickel Stainless Steel
$83.44
Quantity: 1
Claim Your Seller Account
SPIROL Metric Standard Duty Coiled Spring Pin 2mm x 18mm, Nickel Stainless Steel
$83.44
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPIROL Metric Standard Duty Coiled Spring Pin in 2mm x 18mm size is a dependable fastening solution that combines strength and flexibility. Manufactured from UNS S30200 / S30400 Nickel Stainless Steel, this pin meets ISO 8750 and ASME B18.8.3M standards, ensuring high quality and performance. With a minimum double shear strength of 1.90 kN and work-hardened heat treatment, this pin is suitable for various applications in nonferrous materials and mild steel assemblies. Order processing typically takes 2-3 business days. For custom sizes, materials, or finishes, contact SPIROL directly.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
1.90 mm
Specifications Chamfer Length C Ref
0.70 mm
Specifications Diameter D Max
2.25 mm
Specifications Diameter D Min
2.13 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
18 mm
Specifications Length Tolerance
±0.50
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
1.90 kN
Specifications Nominal Dia
2 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.20
Specifications Pin Straightness Tolerance Min
0.18
Specifications Price Per Package Unit
83.44 USD | 111.23 CAD | 88.26 EUR | 50.73 GBP
Specifications Recommended Hole Size Max
2.10 mm
Specifications Recommended Hole Size Min
2.00 mm
Specifications Units Per Box
1000
Specifications Weight Per Piece
0.0002711 kg | 0.0005976 lb
