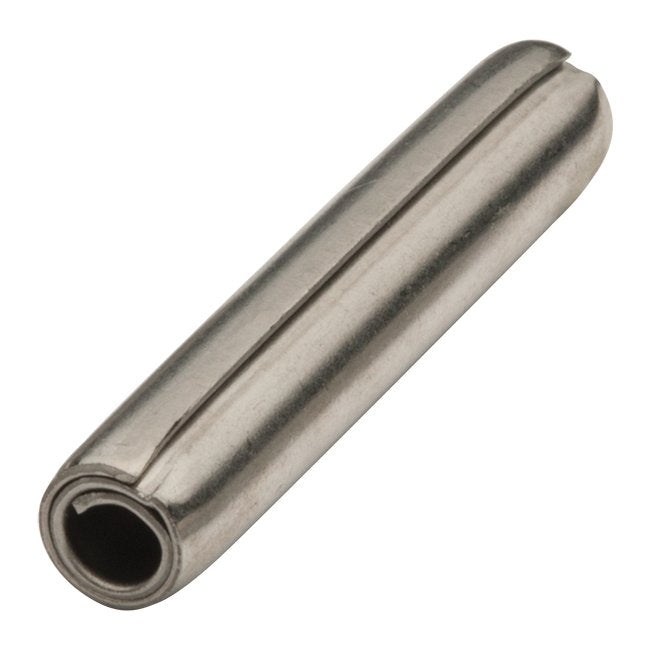

SPIROL Standard Duty Coiled Spring Pin - 2mm x 6mm Nickel Stainless Steel
SPIROL Standard Duty Coiled Spring Pin - 2mm x 6mm Nickel Stainless Steel
SKU:COI-f54c80
High-strength 2mm x 6mm Nickel Stainless Steel Coiled Spring Pin, ISO 8750 & ASME B18.8.3M compliant.
Regular price
$72.23
Regular price
Sale price
$72.23
Unit price
per
Initiate Order
SPIROL Standard Duty Coiled Spring Pin - 2mm x 6mm Nickel Stainless Steel
$72.23
Quantity: 1
Claim Your Seller Account
SPIROL Standard Duty Coiled Spring Pin - 2mm x 6mm Nickel Stainless Steel
$72.23
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the superior strength and flexibility of SPIROL's Standard Duty Coiled Spring Pin in 2mm x 6mm size, crafted from high-grade Nickel Stainless Steel. Ideal for nonferrous, mild steel and hardened components, this Coiled Pin conforms to ISO 8750 & ASME B18.8.3M standards.
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
1.90 mm
Specifications Chamfer Length C Ref
0.70 mm
Specifications Diameter D Max
2.25 mm
Specifications Diameter D Min
2.13 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
6 mm
Specifications Length Tolerance
±0.25
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
1.90 kN
Specifications Nominal Dia
2 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.20
Specifications Pin Straightness Tolerance Min
0.18
Specifications Price Per Package Unit
72.23 USD | 96.28 CAD | 78.28 EUR | 45.11 GBP
Specifications Recommended Hole Size Max
2.10 mm
Specifications Recommended Hole Size Min
2.00 mm
Specifications Units Per Box
1000
Specifications Weight Per Piece
0.0000904 kg | 0.0001992 lb
