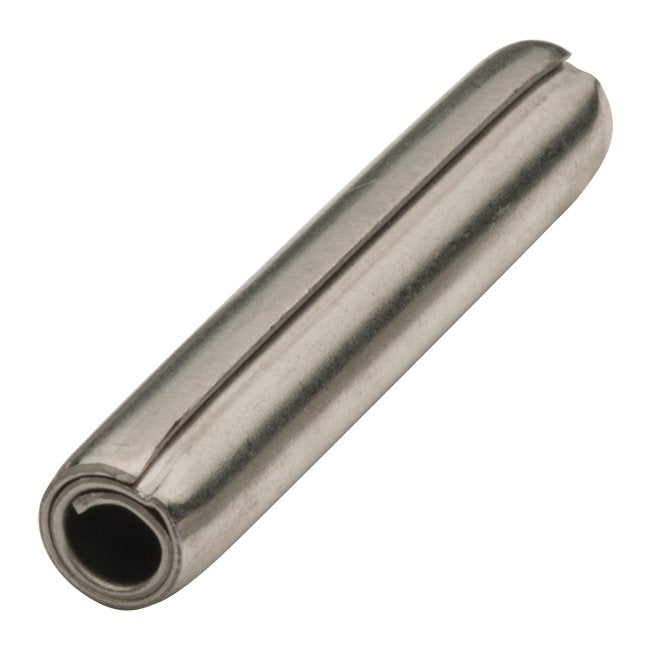

SPIROL Standard Duty Coiled Spring Pin Metric Size 1 x 12 MDK
SPIROL Standard Duty Coiled Spring Pin Metric Size 1 x 12 MDK
SKU:COI-27794c
SPIROL Standard Duty Coiled Spring Pin for strength, flexibility, and corrosion resistance. Compliant with ISO 8750 and ASME B18.8.3M.
Regular price
$61.34
Regular price
Sale price
$61.34
Unit price
per
Initiate Order
SPIROL Standard Duty Coiled Spring Pin Metric Size 1 x 12 MDK
$61.34
Quantity: 1
Claim Your Seller Account
SPIROL Standard Duty Coiled Spring Pin Metric Size 1 x 12 MDK
$61.34
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPIROL Standard Duty Coiled Spring Pin in Metric Size 1x12 MDK is a reliable choice for various applications. Designed to provide a perfect balance of strength and flexibility, this pin is constructed from Nickel Stainless Steel, ensuring durability and corrosion resistance. Compliant with ISO 8750 and ASME B18.8.3M standards, it offers a double shear strength of 0.45 kN and is heat-treated for optimum performance. Each package includes 1000 units, making it ideal for both consumer and institutional use. Contact SPIROL for custom orders and enjoy fast shipping within 2-3 business days.
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
0.95 mm
Specifications Chamfer Length C Ref
0.30 mm
Specifications Diameter D Max
1.15 mm
Specifications Diameter D Min
1.05 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
12 mm
Specifications Length Tolerance
±0.50
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
0.45 kN
Specifications Nominal Dia
1 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.20
Specifications Pin Straightness Tolerance Min
0.18
Specifications Price Per Package Unit
61.34 USD | 81.77 CAD | 68.59 EUR | 39.67 GBP
Specifications Recommended Hole Size Max
1.04 mm
Specifications Recommended Hole Size Min
1.00 mm
Specifications Units Per Box
1000
Specifications Weight Per Piece
0.0000457 kg | 0.0001008 lb
