SPKU Series 36 Fibers Unitube Cables Splitter Kit
SPKU Series 36 Fibers Unitube Cables Splitter Kit
SKU:BRE-3448a9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SPKU Series 36 Fibers Unitube Cables Splitter Kit
$49.99
Quantity: 1
Claim Your Seller Account
SPKU Series 36 Fibers Unitube Cables Splitter Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

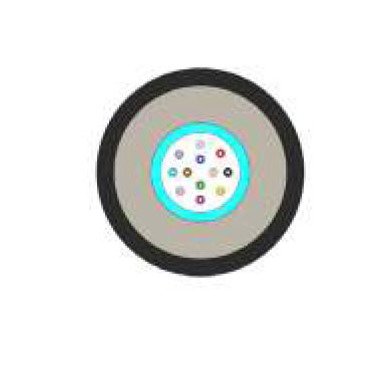

The SPKU Series terminates multi fiber loose tube, unitube or central tube cables from 4 to 36 fibers.36 fiber Unitube, 36 inch breakout length
Product Specifications
Additional Information

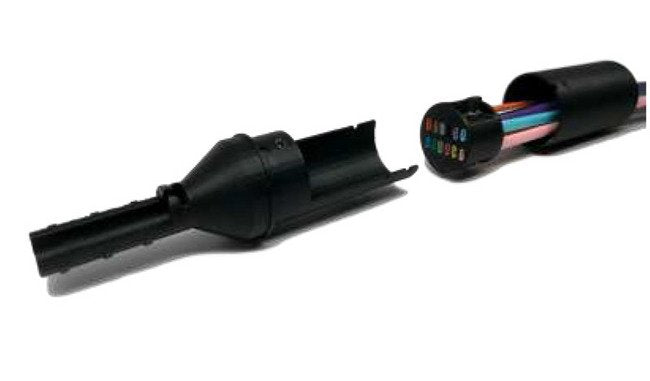

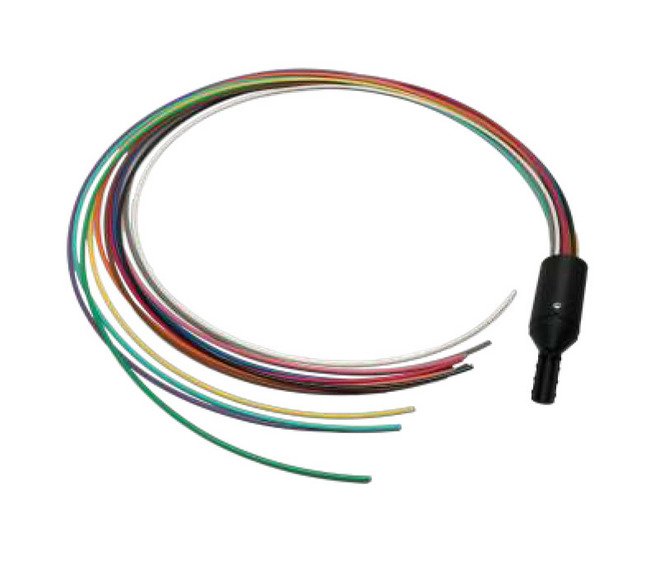

Simple and easy to use, SPK Series Splitter Kits route individual 250 μm fibers into individual 900 μm, Hytrel, color coded buffer tubes via a compact protective housing. The fiber can then be directly terminated, using industry standard connectors with 900 μm boot. The kits are designed to work with any manufacturer’s cable.
Applications
Field termination of multi fiber per tube, loose tube stranded & micro distribution cables, loose tube unitube/central tube plus ribbon fiber cables

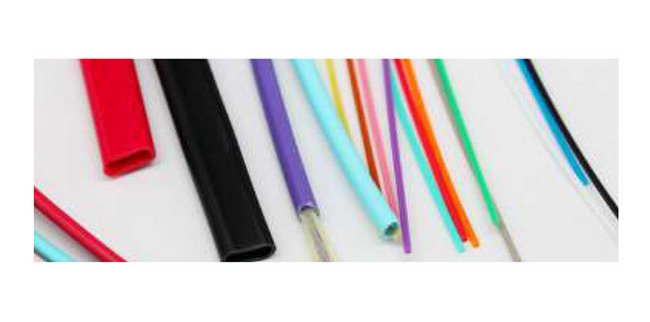

Breakoutfurcation Tubing For Fiber Optic Cable
Any Size, Material or Color900 μm, 2.0 mm, 3.0 mm, Ribbon and CustomPVC, Hytrel, PVDF, PP, LSZH, RoHS or choice of material900 µm, 2.0 mm & 3.0 mm breakout tubing for 250 µm & 900 µm fiberMade to customer’s design specificationsYour company name, phone number & website printed on tubingHarsh environment - any environment - tubing applicationsRainbow of colors available on any tubing12 fiber ribbon breakout tubingHigh & Low Temperature rated tubingKevlar reinforced tubing designsSingle wall, dual wall, multi wall tubingFactory direct pricingQuick turnaround from tubing design to delivery of tubing
Features And Benefits
No special tools requiredColor coded tubingFits virtually any cable designInstalls in minutesWorks with all 900 µm booted connectors
Note
Made in the USA.
Other Kits Opticonx Bokl Series Breakout Kits
BOKL Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 250 µm buffered fiber.
Other Kits Opticonx Bokp Series Breakout Kits
BOKP Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 900 µm buffered fiber.
Other Kits Opticonx Ubk Series Breakout Kits
UBK Series Breakout Kits are designed to provide a direct termination solution for high fiber count bundled unitube cables and MTP/MPO terminations.
Other Kits Opticonx Ubr Series Breakout Kits
UBR Series Breakout Kits are designed to provide a direct termination solution for high fiber count ribbon unitube cables and MTP/MPO terminations.
Specifications Breakout Length
36 in
Specifications Number Of Fiber
36
