Split Bobbin Chassis Mount Power Transformers
Split Bobbin Chassis Mount Power Transformers
SKU:POW-18d326
Upgrade power systems with Split Bobbin Chassis Mount Power Transformers for enhanced safety and performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Split Bobbin Chassis Mount Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Split Bobbin Chassis Mount Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power systems with our Split Bobbin Chassis Mount Power Transformers from the Chassis Mount Leaded World Series. Built to meet European safety standards, these transformers feature split bobbin construction for reduced interwinding capacitance and elimination of the need for electrostatic shielding. With primary windings ranging from 5 VA to 56 VA, 115 V / 230 V operation, and 3,500 V isolation, these transformers are designed with a 6 mm creepage distance for added safety and performance.
Product Specifications
Note 0

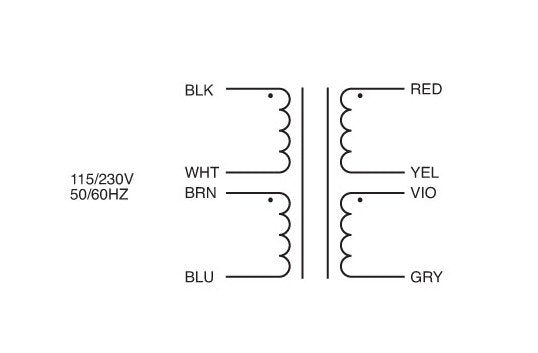

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/4 in
Specifications Electrical Rating
50 V·A
Specifications Height H
2 9/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
8.00 V | 6.250 A
Specifications Secondary Series Connected
16.0 V | 3.125 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
