Split Bobbin Chassis Mount Power Transformers

Split Bobbin Chassis Mount Power Transformers

POW-e86c0f

High-performance chassis mount power transformers with split bobbin design, dual voltage compatibility, and enhanced safety features for smooth power conversion.

$59.99
$59.99
Sale

Initiate Order

Split Bobbin Chassis Mount Power Transformers

Split Bobbin Chassis Mount Power Transformers

$59.99

Quantity: 1

Claim Your Seller Account

Split Bobbin Chassis Mount Power Transformers

Split Bobbin Chassis Mount Power Transformers

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Bobbin Chassis Mount Power Transformers from the International Series feature European split bobbin construction meeting global safety standards. With reduced interwinding capacitance and no need for electrostatic shielding, these transformers are available in various sizes and offer primary windings dual voltage compatibility. Designed with 6mm creepage distance for enhanced safety and 3,500V isolation between primary and secondary windings, these transformers ensure reliable and efficient power transformation ideal for industrial and institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0

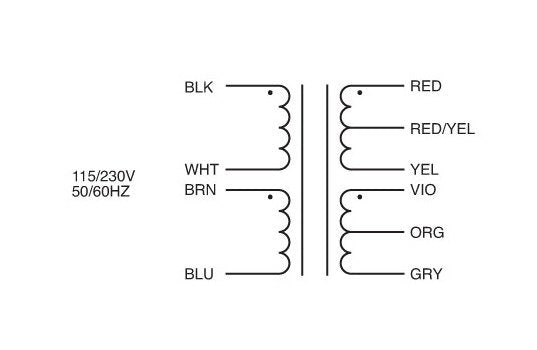

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
Y
Specifications Creepage Distance
6 mm
Specifications Depth D
1 3/4 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/4 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
6.30 V | 1.590 A
Specifications Secondary Series Connected
12.6 V | 0.790 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
