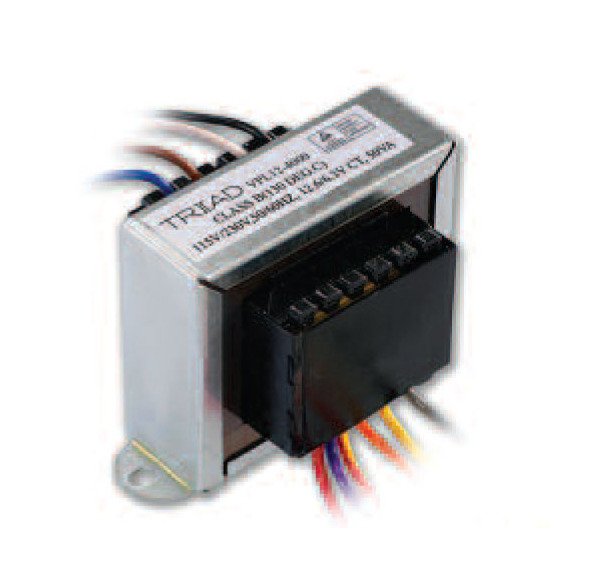

The Split Bobbin International Series Power Transformers are meticulously crafted to meet stringent international safety standards. Featuring European style split bobbins, these transformers reduce interwinding capacitance and eliminate the need for electrostatic shielding. With sizes ranging from 5 VA to 56 VA, dual voltage primary windings (115 V / 230 V 50/60 Hz), and a 3,500 V isolation between primary and secondary, these transformers are engineered with a 6 mm creepage distance primary to secondary. The versatile design allows for series or parallel connection of primary and secondary windings, ensuring efficient power distribution.
Product Specifications
Note 0

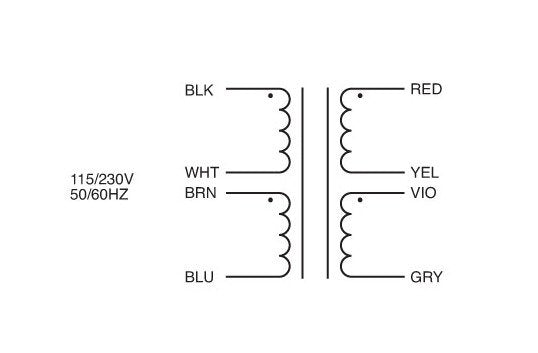

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm

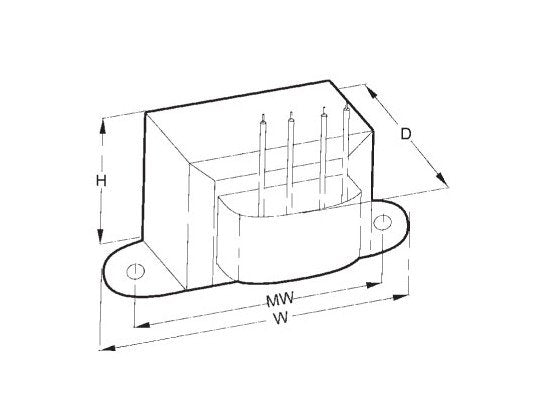

Specifications Depth D
1 7/16 in
Specifications Electrical Rating
5 V·A
Specifications Height H
1 7/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
6.30 V | 0.780 A
Specifications Secondary Series Connected
12.6 V | 0.390 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.40 lb
Specifications Width W
2 3/8 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
