The Chassis Mount Leaded World Series⢠Power Transformers are expertly crafted with European-style split bobbins to meet rigorous International safety agency standards. These transformers boast reduced interwinding capacitance and eliminate the need for electrostatic shielding. With primary windings ranging from 5 VA to 56 VA, dual voltage compatibility (115 V / 230 V, 50/60 Hz), and a 3,500 V isolation between primary and secondary windings, these transformers deliver superior performance. Designed with a 6 mm creepage distance from primary to secondary, they offer unmatched reliability and safety for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0

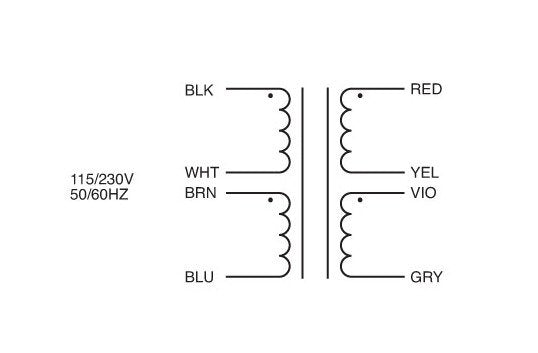

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
1 7/16 in
Specifications Electrical Rating
5 V·A
Specifications Height H
1 7/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
8.00 V | 0.620 A
Specifications Secondary Series Connected
16.0 V | 0.310 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.40 lb
Specifications Width W
2 3/8 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
