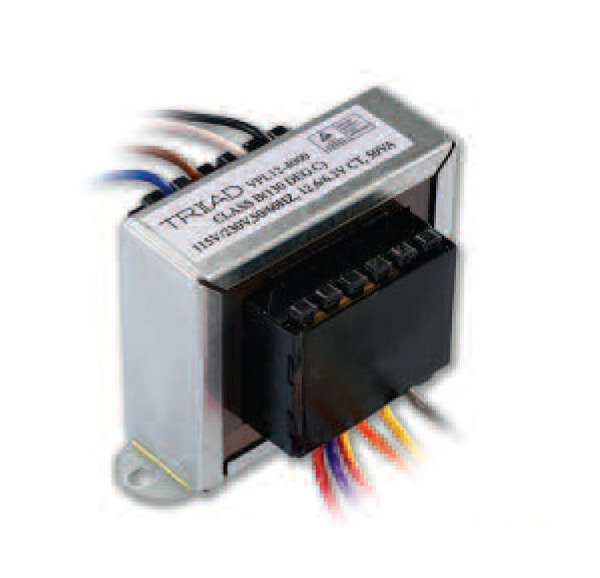

The Chassis Mount Leaded World Series™ Power Transformers feature split bobbin construction, meeting international safety agency standards. With reduced interwinding capacitance and 3,500 V isolation between primary and secondary windings, these transformers are available in sizes from 5 VA to 56 VA. Primary windings can accommodate 115 V / 230 V 50/60 Hz, designed with a 6 mm creepage distance primary to secondary. Suitable for series or parallel connection, these transformers ensure reliable power distribution with Class 2/3 UL File: E65390 and TUV certification.
Product Specifications
Note 0
Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm

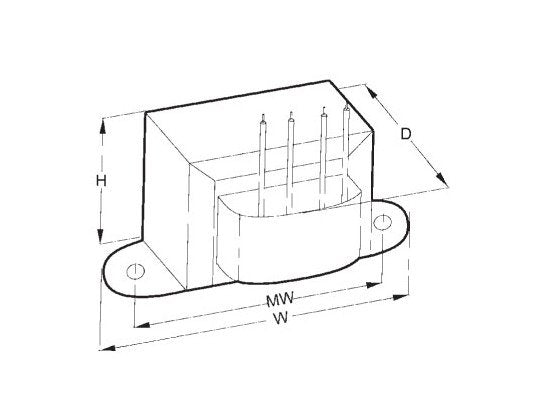

Specifications Depth D
1 7/16 in
Specifications Electrical Rating
5 V·A
Specifications Height H
1 7/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
7.00 V | 0.710 A
Specifications Secondary Series Connected
14.0 V | 0.360 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.40 lb
Specifications Width W
2 3/8 in
Technical Notes 0

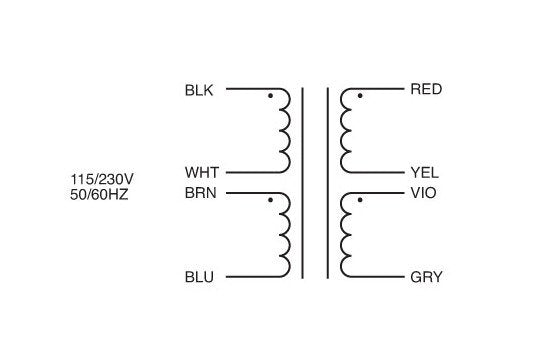

Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
