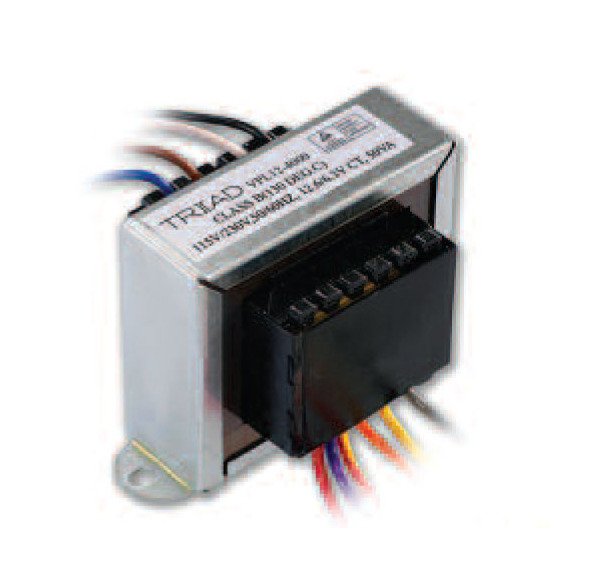

The Chassis Mount Leaded World Series™ Power Transformers feature European style split bobbin construction ensuring compliance with international safety agency standards. The design reduces interwinding capacitance, eliminates the need for electrostatic shielding, and offers sizes ranging from 5 VA to 56 VA. With 115 V / 230 V 50/60 Hz primary windings, 3,500 V isolation between primary and secondary, and a 6 mm creepage distance primary to secondary, these transformers provide exceptional performance and safety for various power applications.
Product Specifications
Note 0

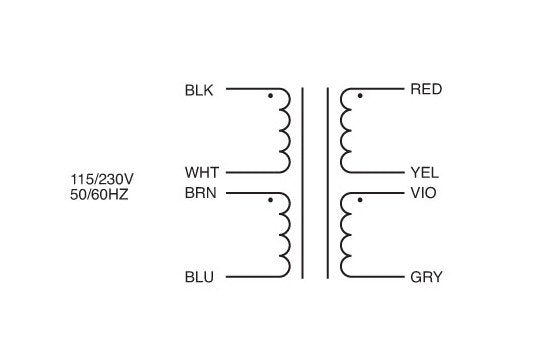

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm

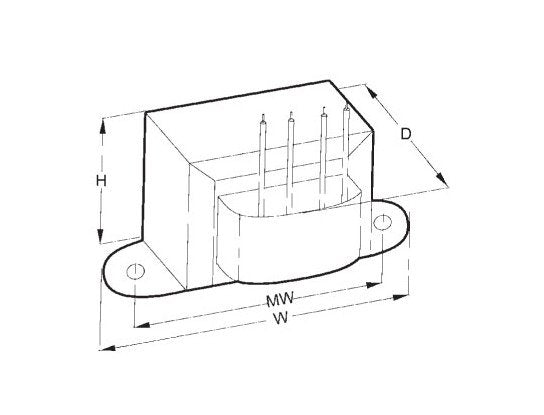

Specifications Depth D
1 3/4 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 3/4 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
5.00 V | 2.000 A
Specifications Secondary Series Connected
10.0 V | 1.000 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
