Split Bobbin Power Transformers
Split Bobbin Power Transformers
SKU:POW-4648b8
Explore our high-performance Chassis Mount Leaded World Series⢠Power Transformers with split bobbin construction for efficient and reliable power conversion.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Split Bobbin Power Transformers
$54.99
Quantity: 1
Claim Your Seller Account
Split Bobbin Power Transformers
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

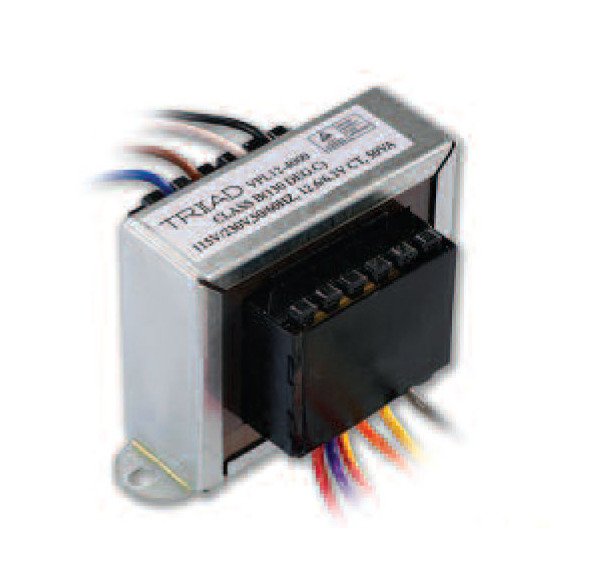

The Chassis Mount Leaded World Series⢠Power Transformers are meticulously crafted to adhere to European safety agency standards with split bobbin construction. This unique design minimizes interwinding capacitance, eliminating the need for electrostatic shielding. Available in various sizes ranging from 5 VA to 56 VA with 115 V / 230 V 50/60 Hz primary windings and featuring 3,500 V isolation between primary and secondary coils. These transformers are engineered with a 6 mm creepage distance primary to secondary, ensuring optimal performance and safety in electrical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0

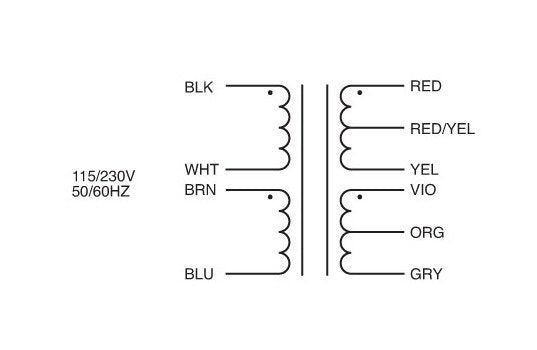

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
X
Specifications Center Tap
Y
Specifications Creepage Distance
6 mm

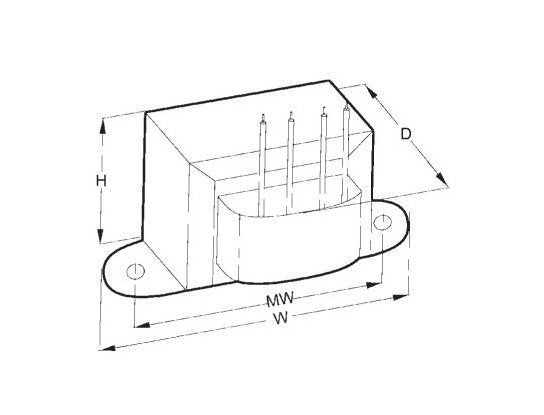

Specifications Depth D
2 1/4 in
Specifications Electrical Rating
50 V·A
Specifications Height H
2 9/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
6.30 V | 7.940 A
Specifications Secondary Series Connected
12.6 V | 3.970 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
