The Chassis Mount Leaded World Series™ Power Transformers are engineered with European split bobbin construction to meet rigorous International safety agency standards. These transformers offer reduced interwinding capacitance and eliminate the need for electrostatic shielding, ensuring optimal performance and safety. Available in various sizes from 5 VA to 56 VA with 115 V / 230 V 50/60 Hz primary windings, they provide a 3,500 V isolation between primary and secondary windings with a 6 mm creepage distance for enhanced safety precautions. The primary and secondary windings can be easily connected in series or parallel configurations, offering versatility and reliability for a wide range of applications.
Product Specifications
Note 0

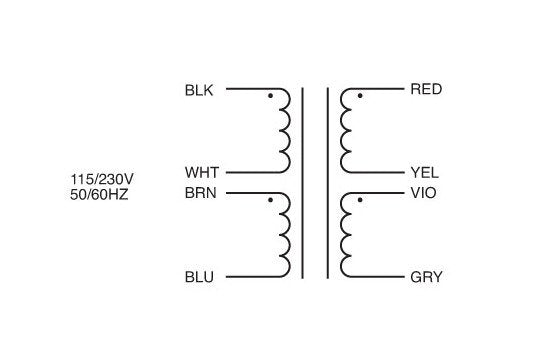

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
1 7/16 in
Specifications Electrical Rating
5 V·A
Specifications Height H
1 7/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel Connected
10.00 V | 0.500 A
Specifications Secondary Series Connected
20.0 V | 0.250 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.40 lb
Specifications Width W
2 3/8 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
