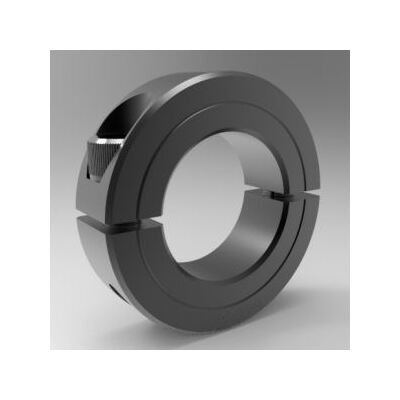

Split Clamp Shaft Collars - Two-Piece Design
Split Clamp Shaft Collars - Two-Piece Design
SKU:ROU-f4a9c5
Precision machined Two-Piece Split Clamp Shaft Collars for secure positioning on various shaft types. Superior holding power with adjustable design.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Split Clamp Shaft Collars - Two-Piece Design
$14.99
Quantity: 1
Claim Your Seller Account
Split Clamp Shaft Collars - Two-Piece Design
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Clamp-Type Shaft Collars are designed for use on standard round shafts, hard or soft, as well as thin-wall tubes or split hubs. Featuring a precision machined, non-marring construction, these collars offer superior holding power over set-screw types. Available in High Strength, Low Profile, and Heavy Duty styles, they can be disassembled and repositioned easily. Choose from materials like Steel, Stainless Steel, Aluminum, Nylon, and Delrin to suit your application. The High Strength style ensures the clamp screw does not protrude beyond the outside diameter, while the Heavy Duty version provides 2X holding power with a larger clamp screw and OD.
Product Specifications
Dimensional Attributes Bore Size
3/16 in
Dimensional Attributes Outside Diameter
0.625 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40 x 3/8
Dimensional Attributes Width
0.313 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.02 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L003
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786033940
