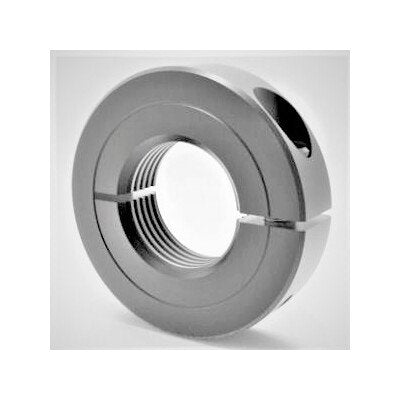

Split Clamp Threaded Shaft Collar - UNF/UNC 1-Piece
Split Clamp Threaded Shaft Collar - UNF/UNC 1-Piece
SKU:THR-120fc5
Precision machined UNF/UNC 1-Piece Split Clamp Threaded Shaft Collars for secure and powerful clamping on standard threaded shafts. Available in High Strength and Low Profile styles.
Regular price
$32.05
Regular price
Sale price
$32.05
Unit price
per
Initiate Order
Split Clamp Threaded Shaft Collar - UNF/UNC 1-Piece
$32.05
Quantity: 1
Claim Your Seller Account
Split Clamp Threaded Shaft Collar - UNF/UNC 1-Piece
$32.05
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Threaded Shaft Collars One-Piece Split Clamp-Type provide a secure fit for standard UNF/UNC threaded shafts, offering superior holding power compared to set-screw collars. Available in High Strength and Low Profile styles, these precision machined collars are non-marring, easy to adjust, and deliver high clamping power. Crafted from Stainless Steel alloy, these collars are durable and reliable for various industrial applications.
Product Specifications
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28
Dimensional Attributes Threaded Bore Size
3/4-10
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.26 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
32.05 USD
Specifications Material
Stainless Steel
Specifications Part Number
4S012
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786011603
