Split Clamp-Type Shaft Collars for Round Bore Shafts
Split Clamp-Type Shaft Collars for Round Bore Shafts
SKU:ROU-973a4f
Precision machined Split Clamp-Type Shaft Collars for round bore shafts, offering superior holding power and flexible placement. Available in multiple materials and styles.
Regular price
$23.21
Regular price
Sale price
$23.21
Unit price
per
Initiate Order
Split Clamp-Type Shaft Collars for Round Bore Shafts
$23.21
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Shaft Collars for Round Bore Shafts
$23.21
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

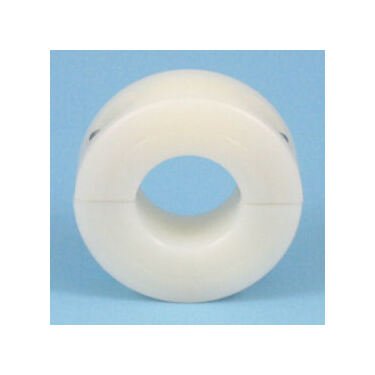

The Two-Piece Split Clamp-Type Shaft Collars are precision machined to be placed anywhere on standard round shafts, protecting them from damage. With superior holding power over set-screw collars, these collars come in High Strength, Low Profile, and Heavy Duty styles. Available in Steel, Stainless Steel, Aluminum, Nylon, and Delrin, these collars offer easy adjustment, high clamping power, and can be disassembled for versatile positioning. The Heavy Duty version provides 2X holding power for secure applications.
Product Specifications
Dimensional Attributes Bore Size
1-1/4 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-20 x 5/8
Dimensional Attributes Width
0.750 in
Specifications Alloy
Delrin®
Specifications Approximate Weight
0.12 lb
Specifications Country Of Origin
USA
Specifications Finish
White
Specifications List Price
23.21 USD
Specifications Material
Plastic
Specifications Part Number
2R104
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Upc Code
662786006098
