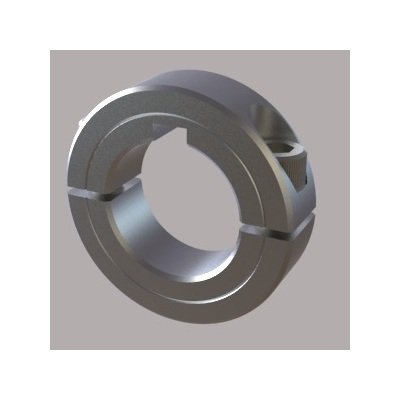

Split Clamp-Type Shaft Collars w/ Keyways - Low Profile
Split Clamp-Type Shaft Collars w/ Keyways - Low Profile
SKU:ROU-d8d138
Precision machined Two-Piece Clamp-Type Shaft Collars with Keyways in Low Profile style, chrome-plated, RoHS compliant, superior holding power.
Regular price
$24.28
Regular price
Sale price
$24.28
Unit price
per
Initiate Order
Split Clamp-Type Shaft Collars w/ Keyways - Low Profile
$24.28
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Shaft Collars w/ Keyways - Low Profile
$24.28
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Clamp-Type Shaft Collars with Keyways in the Low Profile style offer superior holding power over set-screw collars. Precision machined from steel, chrome-plated for durability, these collars protect shafts from damage. With an OD of 1.875 in and a 1-1/8 in bore size, these collars are adjustable, non-marring, and RoHS compliant, ideal for standard round shafts or split hubs.
Product Specifications
Dimensional Attributes Bore Size
1-1/8 in
Dimensional Attributes Keyway
1/4 in
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.2 lb
Specifications Country Of Origin
USA
Specifications Finish
Chrome-Plated
Specifications List Price
24.28 USD
Specifications Material
Steel, Chrome-Plated
Specifications Part Number
8L102KP11
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786038389
