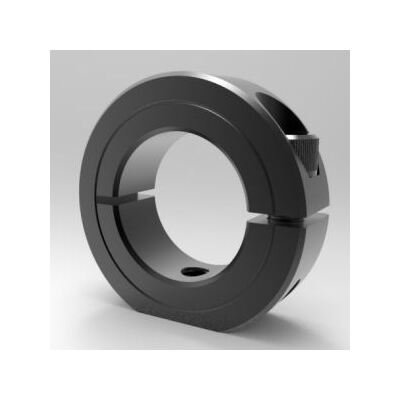

Split Clamp-Type Shaft Mounting Collar - Steel

Name: Split Clamp-Type Shaft Mounting Collar - Steel
Brand: Stafford Manufacturing Corp.
SKU: FLA-d7303f
Price: 24.99 USD
Availability: OutOfStock

SKU:FLA-d7303f

Precision machined Split Clamp-Type Mounting Collar for secure and easy shaft mounting. Steel construction, black oxide finish. RoHS2 and REACH compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Easily mount shafts with precision using our Split Clamp-Type Shaft Mounting Collar. Designed for round shafts, tubes, and split hubs, these collars feature a flat and countersunk hole for secure mounting. Made from durable steel with a black oxide finish, these collars offer high clamping power without marring the surface. Compatible with Pipe Adapter Bushings for versatile use. RoHS2 and REACH compliant. Made in the USA.

Product Specifications

Dimensional Attributes Bore Size

1-1/4 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.782 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

2.063 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.28 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

19L104MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026560

Split Clamp-Type Shaft Mounting Collar - Steel
