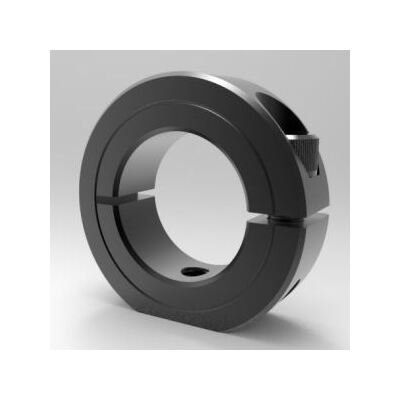

Split Clamp-Type Shaft Mounting Collar, Steel 1-Inch Bore

Name: Split Clamp-Type Shaft Mounting Collar, Steel 1-Inch Bore
Brand: Stafford Manufacturing Corp.
SKU: FLA-4784b1
Price: 15.99 USD
Availability: OutOfStock

SKU:FLA-4784b1

Precision-machined Steel Shaft Mounting Collar with 1-Inch Bore, easy to adjust, high clamping power, RoHS2 & REACH compliant.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Split Clamp-Type Shaft Mounting Collar is a precision-machined solution for securely mounting shafts on surfaces or components. Crafted from high-grade Steel Alloy 1215 with a Black Oxide finish, this collar offers a low-profile design with high clamping power. Featuring a 1-inch bore size, an outside diameter of 1.750 inches, and a width of 0.500 inches, it is designed for easy adjustment and durability. RoHS2 and REACH compliant, making it a reliable choice for various applications.

Product Specifications

Dimensional Attributes Bore Size

1 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.656 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.21 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

19L100MT

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026546
