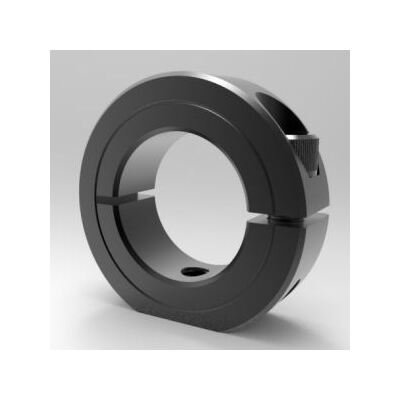

Split Clamp-Type Shaft Mounting Collars, Steel 1-1/2 in Bore
Split Clamp-Type Shaft Mounting Collars, Steel 1-1/2 in Bore
SKU:FLA-7bd2fd
Precisely mount shafts with Split Clamp-Type Collars. Steel construction, low profile, high clamping power.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Split Clamp-Type Shaft Mounting Collars, Steel 1-1/2 in Bore
$29.99
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Shaft Mounting Collars, Steel 1-1/2 in Bore
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Split Clamp-Type Shaft Mounting Collars provide a secure and precise way to mount shafts effortlessly. Designed for standard round shafts and thin-wall tubes, these collars are precision machined from durable steel alloy with a black oxide finish for added protection. Featuring a low profile, high clamping power, and easy adjustability, these collars are ideal for industrial applications. Compliant with RoHS2 and REACH standards, these collars ensure both performance and environmental responsibility. Made in the USA.
Product Specifications
Dimensional Attributes Bore Size
1-1/2 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
2.156 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
2.375 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
1215
Specifications Approximate Weight
0.40 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
19L108MT
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026584
