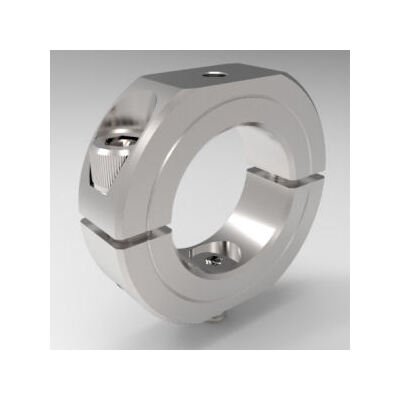

Split Clamp-Type Stackable Shaft Mounting Collars
Split Clamp-Type Stackable Shaft Mounting Collars
SKU:FLA-15df91
Securely stack multiple shafts with precision using Split Clamp-Type Stackable Collars made of high-quality Stainless Steel for durability and easy adjustment.
Regular price
$45.45
Regular price
Sale price
$45.45
Unit price
per
Initiate Order
Split Clamp-Type Stackable Shaft Mounting Collars
$45.45
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Stackable Shaft Mounting Collars
$45.45
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Split Clamp-Type Stackable Shaft Mounting Collars offer precise attachment for multiple shafts, featuring a two-piece construction with drilled and tapped flats for secure stacking. These collars are designed for standard round shafts, hard or soft, with the ability to disassemble and adjust easily. Precision machined from Stainless Steel, these collars are non-marring, provide high clamping power, and come with mounting screws for versatile installation options. Ideal for industrial applications requiring reliable shaft mounting solutions.
Product Specifications
Dimensional Attributes Bore Size
1-1/8 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.686 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Top Threaded Hole
10-24
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.21 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
45.45 USD
Specifications Material
Stainless Steel
Specifications Part Number
19S102ST
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026256
