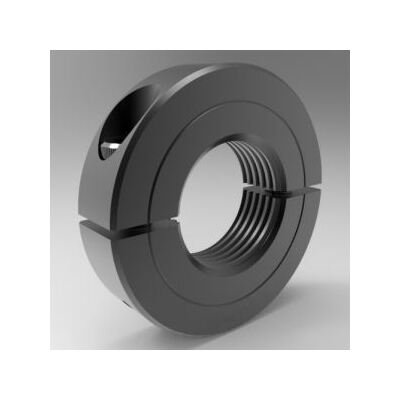

Split Clamp-Type Threaded Bore Shaft Collar, UNF/UNC
Split Clamp-Type Threaded Bore Shaft Collar, UNF/UNC
SKU:THR-5e803e
Precision-engineered Split Clamp-Type Shaft Collar with superior holding power for UNF/UNC threaded shafts. High-strength steel construction for durability.
Regular price
$36.29
Regular price
Sale price
$36.29
Unit price
per
Initiate Order
Split Clamp-Type Threaded Bore Shaft Collar, UNF/UNC
$36.29
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Threaded Bore Shaft Collar, UNF/UNC
$36.29
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Split Clamp-Type Threaded Bore Shaft Collar, designed for UNF/UNC threaded shafts, offers superior holding power compared to set-screw collars. Precision machined from high-strength steel with black oxide finish, it allows easy adjustment anywhere on the shaft. Available in High Strength and Low Profile styles, this collar ensures non-marring, high clamping power. Ideal for industrial applications requiring precision and durability.
Product Specifications
Dimensional Attributes Outside Diameter
3.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Threaded Bore Size
2-12
Dimensional Attributes Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
0.81 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
36.29 USD
Specifications Material
Steel
Specifications Part Number
3L200F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012259
