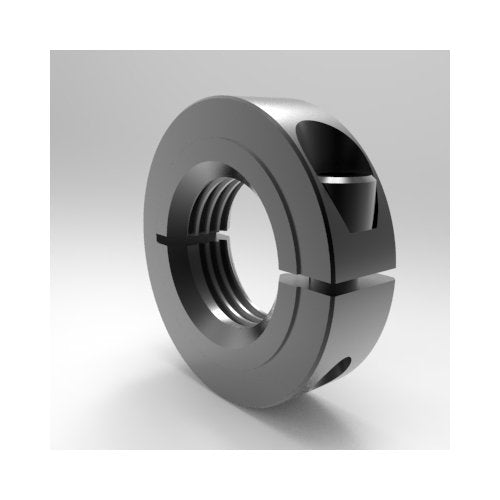

Split Clamp-Type Threaded Hub Collar, UNF/UNC

Name: Split Clamp-Type Threaded Hub Collar, UNF/UNC
Brand: Stafford Manufacturing Corp.
SKU: ROU-126911
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-126911

Precision-machined UNF/UNC Threaded Hub Collar for high clamping power on standard shafts. Non-marring, easy to adjust, with RoHS2 & REACH compliance.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Hub Collar is a precision-machined one-piece split clamp type collar designed for optimal performance on standard UNF shafts. Featuring a precision-machined hub that minimizes friction, this collar is ideal for use as a bearing inner-race, offering superior holding power over traditional set-screw type collars. Non-marring, easy to adjust, and with high clamping power, this collar is made of durable steel and is compliant with RoHS2 and REACH standards.

Product Specifications

Dimensional Attributes Outside Diameter

1.500 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

3/4-10

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.17 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB7L012C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786029967

Split Clamp-Type Threaded Hub Collar, UNF/UNC
