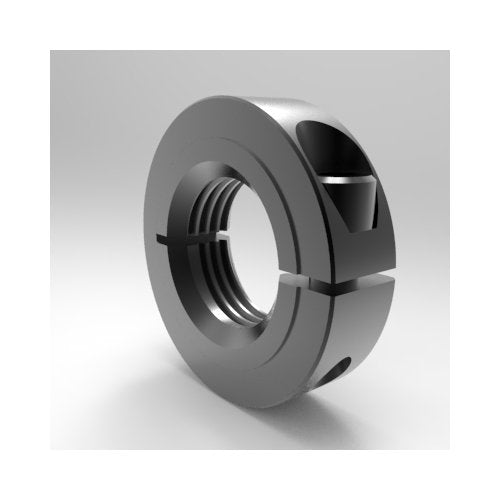

Split Clamp-Type Threaded Hub Collar - UNF/UNC
Split Clamp-Type Threaded Hub Collar - UNF/UNC
SKU:ROU-bf1633
High-performance UNF/UNC Threaded Hub Collar for standard shafts. Easy adjustment, non-marring, and high clamping power. RoHS2 & REACH compliant.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Split Clamp-Type Threaded Hub Collar - UNF/UNC
$19.99
Quantity: 1
Claim Your Seller Account
Split Clamp-Type Threaded Hub Collar - UNF/UNC
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UNF/UNC Threaded Hub Collar is precision-machined for optimal performance on standard UNF shafts. With a one-piece split design, this collar offers superior holding power over traditional set-screw collars. Featuring a non-marring surface and easy adjustability, it is ideal for bearing inner-race applications. Made from steel with a black oxide finish, this collar is RoHS2 and REACH compliant, ensuring high quality and environmental responsibility.
Product Specifications
Dimensional Attributes Outside Diameter
1.313 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Threaded Bore Size
5/8-11
Dimensional Attributes Width
0.438 in
Specifications Alloy
1215
Specifications Approximate Weight
0.12 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
HUB7L010C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786029943
