Split Clamp-Type Threaded Hub Collars - UNF/UNC 5/8-18

Name: Split Clamp-Type Threaded Hub Collars - UNF/UNC 5/8-18
Brand: Stafford Manufacturing Corp.
SKU: ROU-6a4250
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-6a4250

Precision-machined Split Clamp-Type Threaded Hub Collars for secure and versatile shaft fastening. Ideal for UNF shafts.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

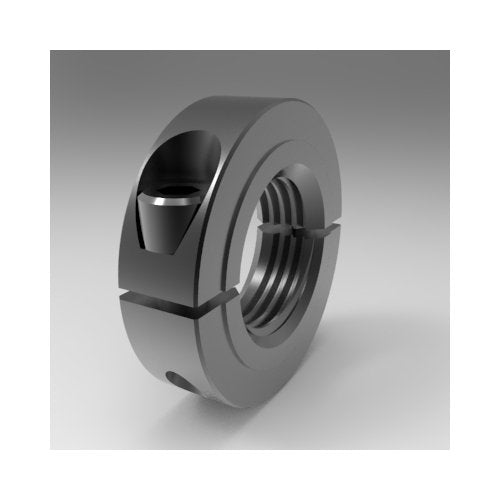

The Split Clamp-Type Threaded Hub Collars are precision-machined with a limited contact area hub design, perfect for use on standard UNF shafts as bearing inner-races. Made of durable steel with a black oxide finish, these collars offer superior holding power over set-screw types. They can be easily adjusted, disassembled, and repositioned along the shaft, providing a secure and versatile fastening solution.

Product Specifications

Dimensional Attributes Outside Diameter

1.313 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

10-32 x 5/8

Dimensional Attributes Threaded Bore Size

5/8-18

Dimensional Attributes Width

0.438 in

Specifications Alloy

1215

Specifications Approximate Weight

0.12 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L010F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030185
