Split Clamp-Type UNF/UNC Threaded Hub Collar
Split Clamp-Type UNF/UNC Threaded Hub Collar
SKU:ROU-d6e685
Precision-machined UNF/UNC hub collar for superior holding power and minimal friction. Ideal for bearing inner-race on standard shafts. Non-marring and easy to adjust.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Split Clamp-Type UNF/UNC Threaded Hub Collar
$29.99
Quantity: 1
Claim Your Seller Account
Split Clamp-Type UNF/UNC Threaded Hub Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

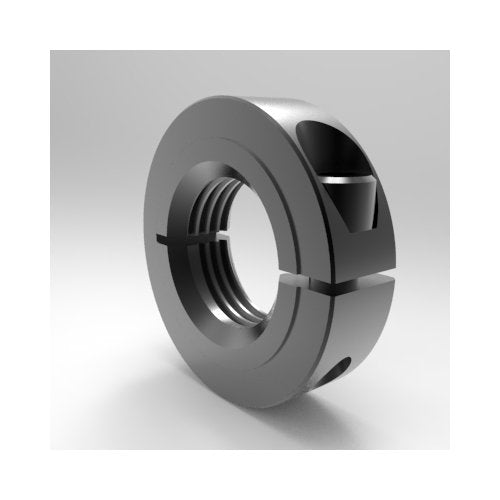

The Split Clamp-Type UNF/UNC Threaded Hub Collar is precision-machined with a hub on the face for minimal friction, making it ideal for bearing inner-race applications. Designed for standard UNF shafts, this collar offers superior holding power compared to set-screw types, ensuring secure and non-marring clamping. Made of high-quality steel with black oxide finish, this low-profile collar is easy to adjust and RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
2.062 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Threaded Bore Size
1-1/4-12
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.29 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
HUB7L104F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786030017
