Split Clamp-Type UNF/UNC Threaded Shaft Collars

Split Clamp-Type UNF/UNC Threaded Shaft Collars

SKU:THR-785fed

Precision-machined Split Clamp-Type Shaft Collars for UNF/UNC threaded shafts. High clamping power & adjustable positioning.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Split Clamp-Type UNF/UNC Threaded Shaft Collars

Split Clamp-Type UNF/UNC Threaded Shaft Collars

$29.99

Quantity: 1

Claim Your Seller Account

Split Clamp-Type UNF/UNC Threaded Shaft Collars

Split Clamp-Type UNF/UNC Threaded Shaft Collars

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

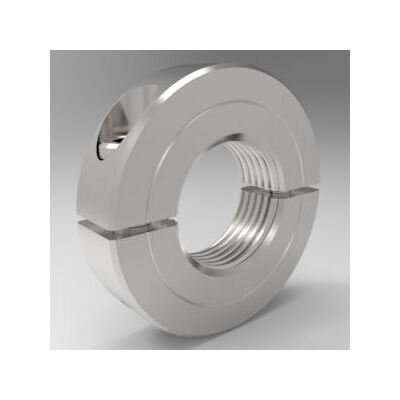

The Split Clamp-Type UNF/UNC Threaded Shaft Collars are precision-machined for use with standard UNF (fine thread) or UNC (coarse thread) shafts. Offering superior holding power over set-screw collars, these 2-piece collars can be easily adjusted and placed anywhere along the shaft. Available in High Strength or Low Profile styles, they come in steel or stainless steel variants for added durability. With a non-marring design and high clamping force, these collars ensure secure shaft positioning.

Product Specifications

Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Threaded Bore Size
1-8
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.3 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
4S100F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012600
