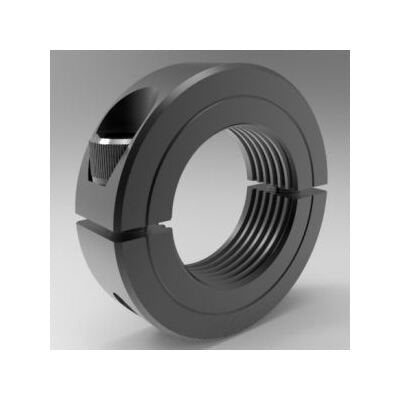

Split Clamp-Type UNF/UNC Threaded Shaft Collars

Name: Split Clamp-Type UNF/UNC Threaded Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: ROU-260b7b
Price: 12.99 USD
Availability: OutOfStock

SKU:ROU-260b7b

Precision machined Split Clamp-Type Shaft Collars for UNF/UNC threaded shafts. High clamping power & easy adjustment.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance shaft stability with our precision machined Split Clamp-Type UNF/UNC Threaded Shaft Collars. Designed to fit standard UNF (fine thread) or UNC (coarse thread) shafts, offering superior holding power over set-screw collars. Choose from High Strength or Low Profile styles for versatile applications. These collars are disassemblable, non-marring, and easy to adjust, ensuring high clamping power for secure shaft positioning. Available in Steel or Stainless Steel variants.

Product Specifications

Dimensional Attributes Outside Diameter

0.688 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

4-40 x 3/8

Dimensional Attributes Threaded Bore Size

5/16-24

Dimensional Attributes Width

0.313 in

Specifications Alloy

1215

Specifications Approximate Weight

0.02 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

8L005F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012686

Split Clamp-Type UNF/UNC Threaded Shaft Collars
