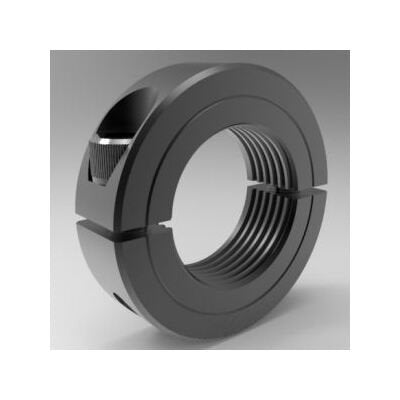

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

SKU:THR-b44050

Precision machined Split Clamp-Type UNF/UNC Threaded Shaft Collar for standard threaded shafts, offering superior holding power in a Low Profile design.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

$24.99

Quantity: 1

Claim Your Seller Account

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

Split Clamp-Type UNF/UNC Threaded Shaft Collars - Low Profile

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Ideal for standard threaded shafts, our Split Clamp-Type UNF/UNC Threaded Shaft Collars feature precision machining for superior holding power. Available in Low Profile style, these collars are disassemblable, non-marring, and easy to adjust. Made from high-strength Steel with a Black Oxide finish. Designed with a 7/8-14 threaded bore and a clamp screw size of 1/4-28 x 5/8. RoHS2 and REACH compliant. Made in the USA.

Product Specifications

Dimensional Attributes Outside Diameter
1.625 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Threaded Bore Size
7/8-14
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.19 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L014F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012785
