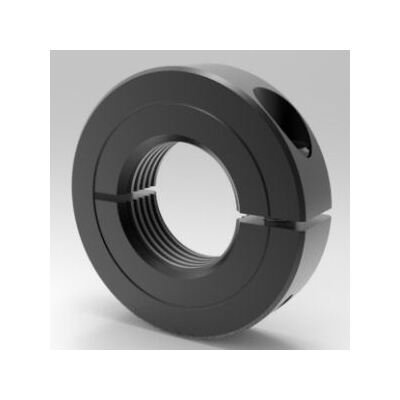

Split Clamp UNF/UNC Threaded Shaft Collar
Split Clamp UNF/UNC Threaded Shaft Collar
SKU:THR-8f8173
Premium UNF/UNC Threaded Shaft Collar for superior clamping power on standard threaded shafts. Precision-machined and non-marring, available in Steel or Stainless Steel.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Upgrade your machinery with the precision-machined UNF/UNC Threaded Shaft Collars. Designed for standard UNF/UNC threaded shafts, these one-piece split clamp collars offer superior holding power over set-screw types. Available in High Strength and Low Profile styles, they are non-marring, easy to adjust, and ensure high clamping power. Made from durable Steel or Stainless Steel, these collars are RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
0.813 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
4-40
Dimensional Attributes Threaded Bore Size
5/16-18
Dimensional Attributes Width
0.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.03 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
4L005
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786011306
