Split Pack Power Transformers
Split Pack Power Transformers
SKU:POW-62f2ca
Versatile Split Pack™ Power Transformers for efficient power distribution on PC boards with dual secondary configuration and hi-pot safety testing.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Split Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Split Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Split Pack™ Power Transformers by Triad are expertly designed for PC board applications, featuring nonconcentric windings that eliminate the need for electrostatic shielding. With dual secondary configuration options and versatile primary connections, these transformers offer an Electrical Rating of 20.0 VA, ensuring reliable power distribution. Hi-pot tested for safety and with precise PC terminal pin spacing, these transformers meet the highest industry standards for quality and performance.
Product Specifications
Specifications Dimension A
0.30 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.60 in
Specifications Electrical Rating
20.0 V·A
Specifications Height H
1 7/16 in
Specifications Length L
2 1/4 in
Specifications Mounting Width
1 1/2 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
14.0 V at 1.4 A
Specifications Secondary Voltage In Series
28.0 V CT at 0.7 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.80 lb
Specifications Width W
1 7/8 in
Technical Notes 0

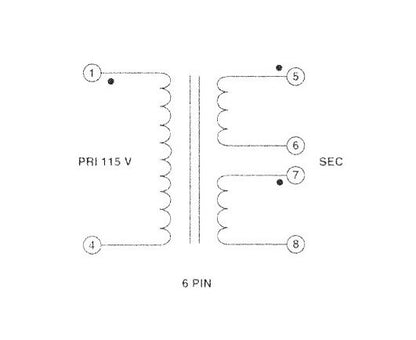

Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
