Split Pack Power Transformers
Split Pack Power Transformers
SKU:POW-4e8ff7
Enhance PC board applications with Triad Split Pack™ Power Transformers - versatile, cost-effective, and reliable. Find dual secondary configurations for optimal performance!
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Split Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Split Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Split Pack™ Power Transformers by Triad offer unparalleled versatility and efficiency for PC board applications. Unlike traditional transformers, the split bobbin winding eliminates costly electrostatic shielding with low capacitive coupling. This transformer is designed with dual secondary configurations and options for single or dual primaries, ensuring optimal performance and flexibility in various electronic setups. With Hi-pot testing at 2,500 VRMS and precise PC terminal pin spacing, these transformers meet high industry standards for reliability and accuracy.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

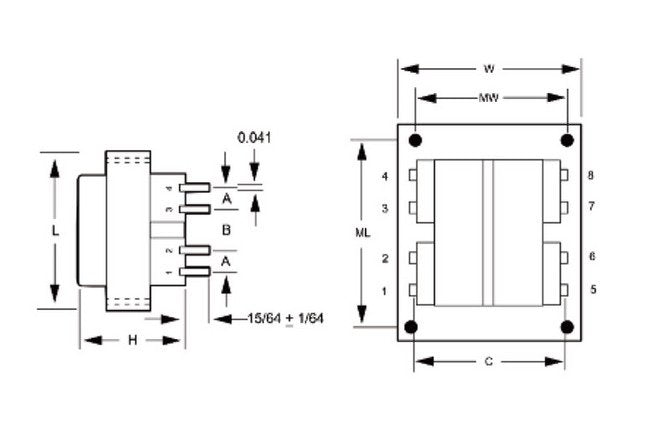

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
6.3 V at 5.7 A
Specifications Secondary Voltage In Series
12.6 V CT at 2.85 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
