Split Pack Power Transformers
Split Pack Power Transformers
SKU:POW-ffe961
Versatile Split Pack™ Power Transformers for optimal PC board applications. Unique split bobbin design eliminates electrostatic shielding. Ideal for institutional procurement.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Split Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Split Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Split Pack™ Power Transformers are a versatile solution for PC board applications. Featuring a unique split bobbin design, these transformers eliminate costly electrostatic shielding with side-by-side windings. With dual secondary configuration options and dual primaries, these transformers offer electrical ratings of 36.0 V·A. The hi-pot tested transformers come with detailed technical notes for accurate placement, making them ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

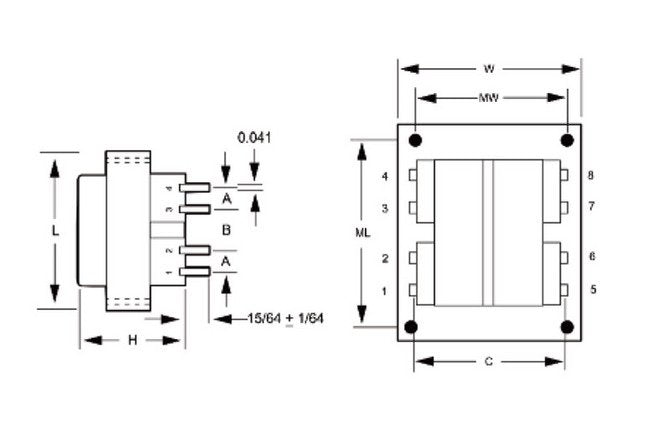

Product Specifications
Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
60.0 V at 0.6 A
Specifications Secondary Voltage In Series
120.0 V CT at 0.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
