Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

POW-8e405c

Versatile Split Pack™ transformers for PC boards with dual secondary configuration and high electrical ratings. Adheres to strict safety standards.

$34.99
$34.99
Sale

Initiate Order

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$34.99

Quantity: 1

Claim Your Seller Account

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Pack™ Class 2/3 Power Transformers by Triad are specially designed for PC board applications, featuring a split bobbin winding that eliminates electrostatic shielding needs. With a dual secondary configuration and options for single or dual primaries, these transformers offer high versatility and efficiency. Boasting dimensions of 1.260" (H) x 1.201" (W) x 1.398" (L) and electrical ratings of 2.5 V·A, they are ideal for various power applications. The transformers are hi-pot tested at 4,250 VRMS and adhere to specific connections for different voltage inputs, ensuring reliable performance and safety.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

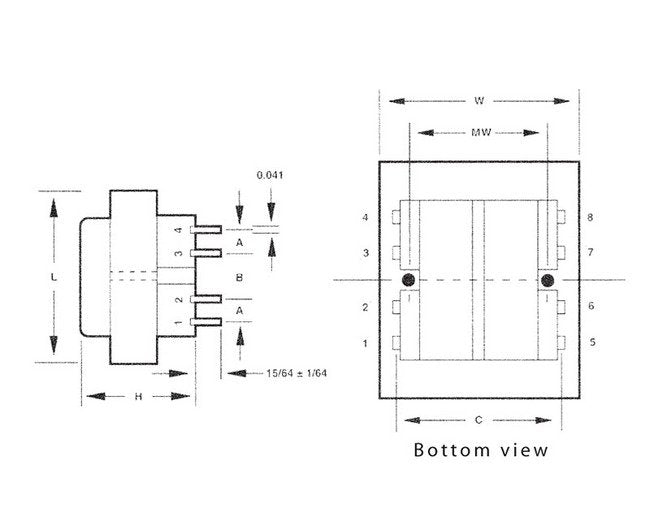

Specifications Dimension A
0.265 in
Specifications Dimension B
0.265 in
Specifications Dimension C
1.200 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
2.5 V·A
Specifications Height H
1.260 in
Specifications Length L
1.398 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
28.0 V at 0.09 A
Specifications Secondary Voltage In Series
56.0 V CT at 0.045 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.25 lb
Specifications Width W
1.201 in
Technical Notes 0

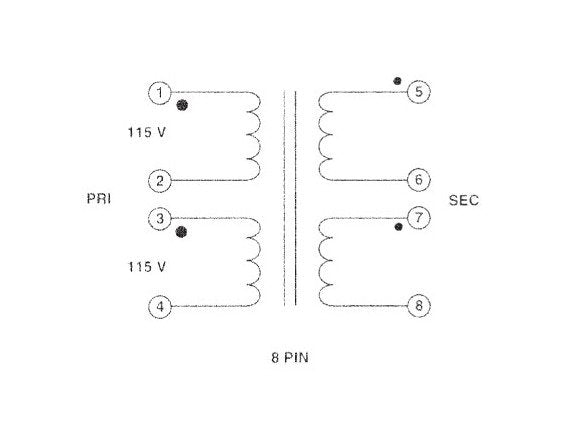

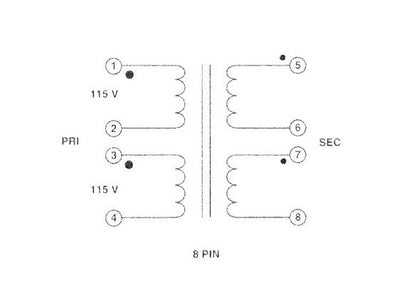

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
