Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

POW-38e981

Triad Split Pack™ Class 2/3 Power Transformers - Versatile, efficient, and compliant transformers for PC board applications.

$42.99
$42.99
Sale

Initiate Order

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$42.99

Quantity: 1

Claim Your Seller Account

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$42.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Pack™ Class 2/3 Power Transformers by Triad are perfect for PC board applications, featuring a unique split bobbin design that eliminates electrostatic shielding needs. With dual secondary configuration options and dual primary compatibility, these transformers offer versatile electrical ratings, including 36.0 V·A and 36.0 V CT at 1.0 A. Tested at 4,250 VRMS, TUV approved, and meeting strict dimensional and mounting standards, these transformers are reliable, efficient, and ideal for various institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
TUV Approved

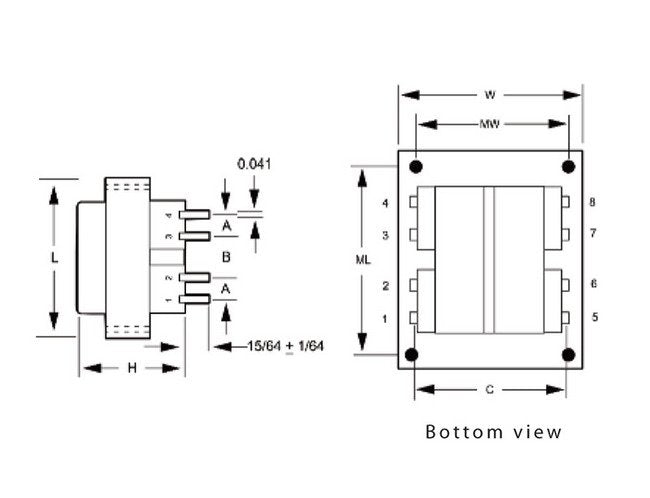

Specifications Dimension A
0.416 in
Specifications Dimension B
0.416 in
Specifications Dimension C
1.870 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1.634 in
Specifications Length L
2.638 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
8
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
18.0 V at 2.0 A
Specifications Secondary Voltage In Series
36.0 V CT at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
2.205 in
Technical Notes 0

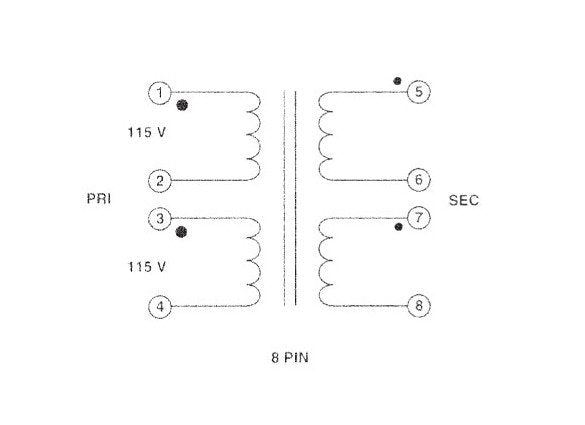

Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
