Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

POW-47fa50

Enhance PC board applications with the Split Packâ„¢ Class 2/3 Power Transformers by Triad. Versatile design, dual secondary configuration, and efficient power transformation.

$29.99
$29.99
Sale

Initiate Order

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$29.99

Quantity: 1

Claim Your Seller Account

Split Pack™ Class 2/3 Power Transformers

Split Pack™ Class 2/3 Power Transformers

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Pack™ Class 2/3 Power Transformers by Triad offer unparalleled versatility for PC board applications. Featuring a split bobbin design with primaries and secondaries side-by-side, these transformers eliminate costly electrostatic shielding thanks to their low capacitive coupling. With dual secondary configuration options and a range of primary voltage and frequency settings, these transformers provide efficient and reliable power transformation for various electronic systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

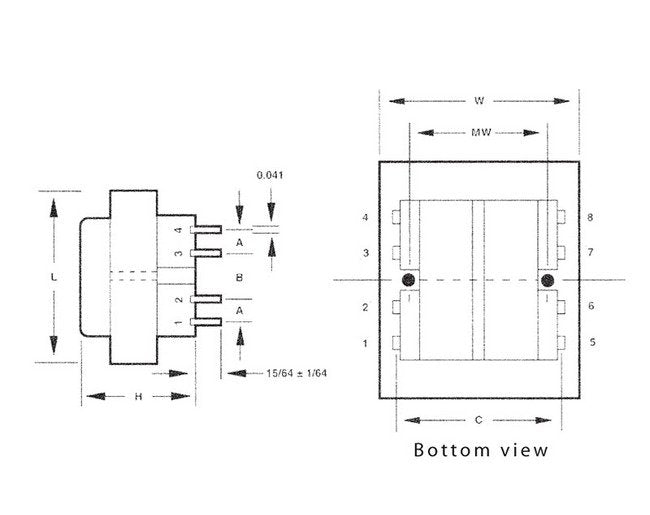

Specifications Dimension A
0.265 in
Specifications Dimension B
0.265 in
Specifications Dimension C
1.200 in
Specifications Dimension D
0.041 in
Specifications Dimension E
0.020 in
Specifications Dimension F
0.236 in
Specifications Electrical Rating
2.5 V·A
Specifications Height H
1.260 in
Specifications Length L
1.398 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 0.3 A
Specifications Secondary Voltage In Series
16.0 V CT at 0.15 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.25 lb
Specifications Width W
1.201 in
Technical Notes 0
Hi-pot tested at 4,250 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
