Split Pack™ PC Mount Power Transformers

Split Pack™ PC Mount Power Transformers

POW-af855a

Versatile and efficient Split Packâ„¢ PC Mount Power Transformers designed for PC board applications, ensuring reliable power transformation with high-quality construction.

$89.99
$89.99
Sale

Initiate Order

Split Pack™ PC Mount Power Transformers

Split Pack™ PC Mount Power Transformers

$89.99

Quantity: 1

Claim Your Seller Account

Split Pack™ PC Mount Power Transformers

Split Pack™ PC Mount Power Transformers

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Packâ„¢ PC Mount Power Transformers from Triad offer a versatile solution for PC board applications. Featuring a split bobbin design with nonconcentric windings, these transformers eliminate costly electrostatic shielding thanks to low capacitive coupling. With dual secondary configurations and options for single or dual primaries, they provide efficient and reliable power transformation. The transformer is hi-pot tested at 2,500 VRMS and offers precise PC terminal pin spacing for accurate placement. Meeting industry standards, these transformers are ideal for a wide range of institutional and government procurement requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

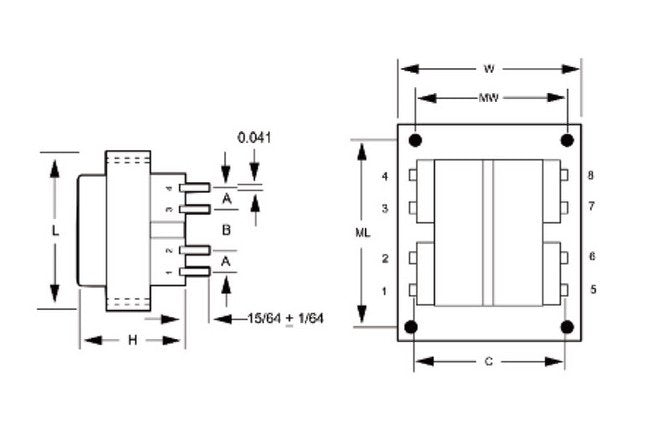

Product Specifications

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
5.0 V at 7.2 A
Specifications Secondary Voltage In Series
10.0 V CT at 3.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
