Split Pack™ Power Transformers

Split Pack™ Power Transformers

POW-927e5d

Efficient and versatile Split Packâ„¢ Power Transformers for PC board applications, ensuring reliability and safety with high electrical rating. FCC and CE certified.

$59.99
$59.99
Sale

Initiate Order

Split Pack™ Power Transformers

Split Pack™ Power Transformers

$59.99

Quantity: 1

Claim Your Seller Account

Split Pack™ Power Transformers

Split Pack™ Power Transformers

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Split Pack™ Power Transformers by Triad are the ideal solution for PC board applications requiring efficiency and versatility. With a nonconcentric split bobbin design, these transformers minimize capacitive coupling and eliminate the need for electrostatic shielding, reducing costs. Available in a dual secondary configuration with options for single or dual primaries, these transformers offer a high electrical rating of 36.0 V·A, ensuring reliable performance. The Hi-pot testing at 2,500 VRMS guarantees safety and accuracy in operation, while the PC terminal pin spacing allows for precise placement. Meeting stringent industry standards, including FCC and CE certifications, these transformers are a top choice for both consumer and institutional buyers.

Product Specifications

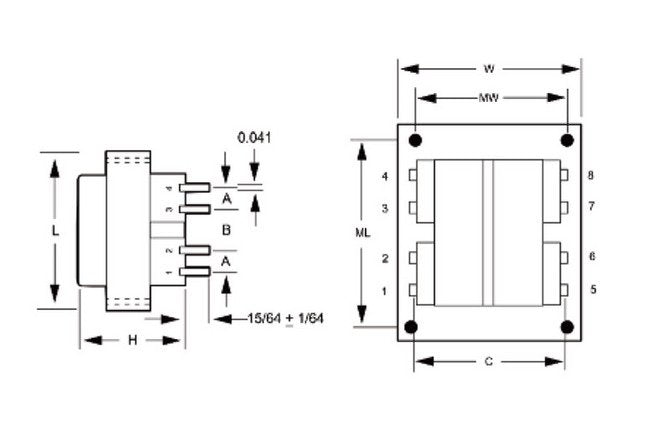

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
12.0 V at 3.0 A
Specifications Secondary Voltage In Series
24.0 V CT at 1.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0

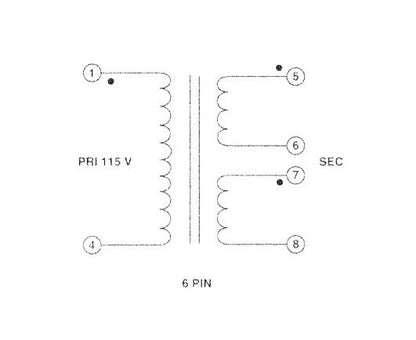

Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
