Split Pack™ Power Transformers - PC Mount

Split Pack™ Power Transformers - PC Mount

POW-fd7b88

Versatile Split Pack™ Power Transformers - Ideal for PC board applications with dual secondary configuration options and precise electrical ratings.

$45.99
$45.99
Sale

Initiate Order

Split Pack™ Power Transformers - PC Mount

Split Pack™ Power Transformers - PC Mount

$45.99

Quantity: 1

Claim Your Seller Account

Split Pack™ Power Transformers - PC Mount

Split Pack™ Power Transformers - PC Mount

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PC Mount Split Pack™ Power Transformers by Triad offer exceptional versatility for PC board applications. Featuring a unique split bobbin design with nonconcentric windings, these transformers eliminate costly electrostatic shielding. With dual secondary configuration options and a choice of single or dual primaries, they deliver reliable performance. Hi-pot tested at 2,500 VRMS, these transformers ensure safety and quality. With precise specifications including primary voltage options of 115 V | 230 V and electrical rating of 36.0 V·A, these transformers are ideal for diverse applications.

Product Specifications

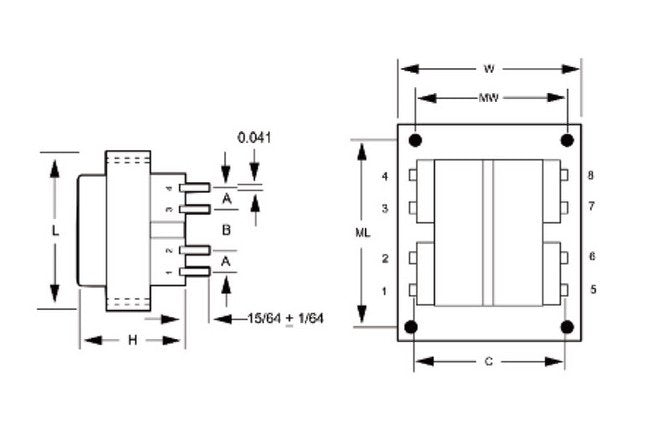

Specifications Dimension A
0.40 in
Specifications Dimension B
0.40 in
Specifications Dimension C
1.850 in
Specifications Electrical Rating
36.0 V·A
Specifications Height H
1 9/16 in
Specifications Length L
2 5/8 in
Specifications Mounting Length
2.188 in
Specifications Mounting Width
1.75 in
Specifications Number Of Pins
6
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
8.0 V at 4.5 A
Specifications Secondary Voltage In Series
16.0 V CT at 2.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
2 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.PC terminal pin spacing for accurate placement.115 V connect primary in parallel.230 V connect primary in series.Series Connections:Primary - Input 1 & 4Connect 2 & 3Secondary - Input 5 & 8Connect 6 & 7Parallel Connections:Primary - Input 1 & 2Connect 1 & 3. 2 & 4Secondary - Input 5 & 8Connect 5 & 7, 6 & 8For single primary, omit pins 2 and 3.1.1 & 2.5 VA are not offered with mounting holes.
